Product information of SS490 Carbon Steel Plate

JIS SS490 structural steel angles are a popular choice for communication towers, factory warehouses, equipment supports and other industrial or engineering locations.
JIS SS490 hot rolled carbon steel angle iron is available in black, galvanized or painted finishes.

Since SS490 is a common carbon steel and is not corrosion resistant, black is not recommended when the steel is in regular contact with water or corrosive air.

Painting is also a good choice. It can be painted any color to coordinate with its surroundings.

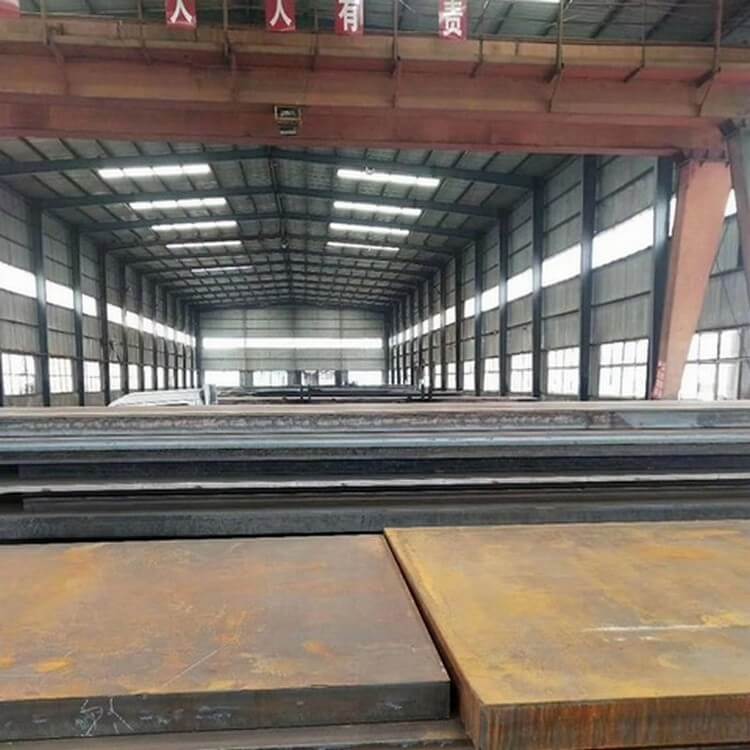

Carbon steel production line

KUAIMA steel company has more than ten years of experience in diversified operations and multi-product transactions, involving round bar, ship plate, seamless pipe, plate, coil, wire, bright bar, pipe fittings and a wide range of carbon steel, alloy steel And more product sizes of stainless steel materials, these products we produce meet national and international quality standards, such as ASTM, ASME, DIN, JIS, ISO, etc. The company has 25 production lines for various products, with an annual output of 500,000 tons, and is committed to Provide high-quality steel products and provide supporting services and solutions for global customers. Welcome to KUAIMA steel company.

SS490 Carbon Steel Plate chemical composition

Carbon (max) Manganese* Phosphorus (max) Sulfur (max) Silicon Copper (max) Nickel (max) Chromium (max) Molybdenum (max) Vanadium (max) Niobium (max)
0.35 0.60-1.05 0.035 0.04 0.10-0.35 0.4 0.4 0.3 0.12 0.08 0.02

SS490 Carbon Steel Plate mechanical properties

Tensile strength (psi) min Yield strength (psi) min Elongation in 2” (%) min Reduction of area (%) min Brinell Hardness (BHN) max
70,000 psi 36,000 psi 22% 30% 187

SS490 Carbon Steel Plate specification

Product Name

SS490 Carbon Steel Plate Product Manufacturer

Length

1m-12m or as required

Width

0.6m-3m or as required

Normal size

2000*6000mm 2200*6000mm 1500*6000mm 2000*8000mm 2000*8000mm

Thickness

0.1mm-300mm or as required

Standard

AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc.

Surface Treatment

Clean, blasting and painting according to customer requirement

Thickness tolerance

±0.1mm

Material

S235Jr Q235B SS400 A36 st37-2 Q345B,Q345C,Q345D,Q345E,Q390,Q390B,Q390C,Q390D,Q390E,Q420,Q420B,Q420C,Q420DQ420E,Q460,Q460D,Q500C,Q500D,Q500E,Q550C,Q550D,Q550E,Q620C,Q620D,Q620E,Q690A,Q690B,Q690C,Q690D,Q690E,Q690D,Q690C,Q890C,Q890D,SS490,16Mo3,16MnL,16MnR ,16Mng,16MnDR
HG785D,S690QL,50MN

Export packing

steel strip packed.
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required

Capacity

250,000 tons/year

Advantages and Disadvantages of Carbon

Advantages
1. The raw material of carbon steel is easy to find, so it is usually low in production cost.
2. It has a robust construction, high ductility, easy fabricating, good abrasion resistance, and great versatility.
3. It is in a wide selection of thicknesses, sizes, grades, and types to choose from.
4. Being a cost-effective alternative to GI, GL, and SS steel.
Disadvantages
1. High carbon sometimes are too difficult to work with.
2. Relatively speaking, it is less attractive, and more susceptible to rust and corrosion.
3. When the temperature exceeds 200 degrees, the wear resistance of the carbon plate will deteriorate.
4. Its hardenability is not good, prone to deformation or cracking when doing so.
